Cluster Drilling Hammer
Hammer & BIT
We, SUNGWON Heavy Machinery, have been manufacturing and supplying rock,
soil drilling equipment and tools of DTH Hammers, Hammer Bits and Auger
Machines in Korea.
- Hammer & BIT
- CD Hammer
SUNGWON Product
CD HAMMER
-

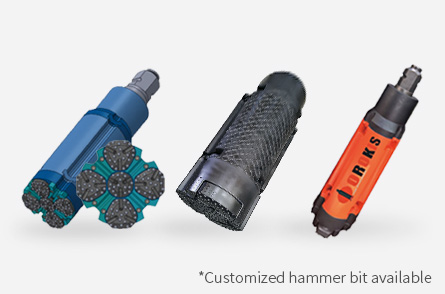

CD Hammer
-

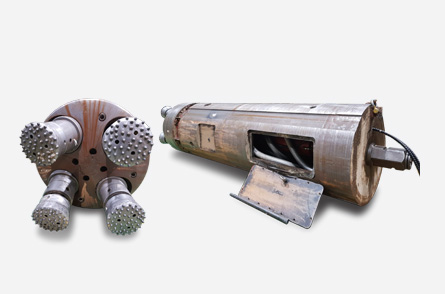

Extended Hammer
CD HAMMER STANDARD SPECIFICATION
| Model |
|---|
| SW-CD38 |
| SW-CD445/460 |
| SW-CD470 |
| SW-CD525 |
| SW-CD575 |
| SW-CD625 |
| SW-CD975 |
| SW-CD1185 |
| SW-CD1485 |
| Out diameter | No of Hammer | Weight | Air Consumption |
|---|---|---|---|
| ø | Quantity | Kg | CFM |
| 380 | 5" X 3pcs | 1,200 | 1300~1500 |
| 445/460 | 6" X 3pcs | 1,570 | 1800~2000 |
| 470 | |||
| 525 | 8" X 3pcs | 2,600 | 3000~3500 |
| 575 | 2,700 | ||
| 625 | 10" X 3pcs | 3,600 | |
| 975 | 12" X 5pcs | 8,300 | 4500~6000 |
| 1185 | 9,500 | 5500~6000 | |
| 1485 | 15" X 5pcs | 13,000 | 5800~5600 |
- *Specification and image are subject to aleration without prior notice.
