SUNGWON Product
Auger
Auger Specification
Doughnut
Augers
For Rod & Casing operation
(2 in 1 function)

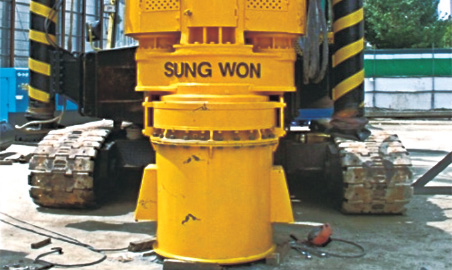

Doughnut Auger SPECIFICATION
| Specification | |
|---|---|
| Motor | |
| Rotation Speed (rpm) |
Screw |
| Casing | |
| Rated Torque (kg-m) |
Screw |
| Casing | |
| Auger Center to Guide Center(mm) | |
| Power Supply | |
| Weight(kg) | |
| SW-150PW-DA | SW-200PW-DA |
|---|---|
| 55Kw x 8P x 2 | 75Kw x 8P x 2 |
| 4.4 | |
| 1.7 | |
| 24,409 | 32,500 |
| 63,176 | 84,200 |
| 655 | |
| AC220V(380V) X 60Hz X 3P | |
| 12,500 | |
